Opto Edu A41.1940 Binocular Operating Microscope Dual Head Wf12.5x For Orthopedics

Product Categories
Opto-Edu (Beijing) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Opto Edu A41.1940 Binocular Operating Microscope Dual Head Wf12.5x For Orthopedics

Brand Name : OPTO-EDU

Model Number : A41.1940

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Main Usage : Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy

2 Heads 2 People : Main Head Binocular, 45° Inclined, Interpupillary Distance 53~76mm

Diopter : Both Left & Right Eyetube Diopter Adjustable ±6D

Eyepiece : WF12.5x

Zoom Body : Motorized Continues Zoom 1:6, Parallel Light System

Total Magnification : 2x~30x

Contact Now

Operating Microscope, Dual Head, For Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy

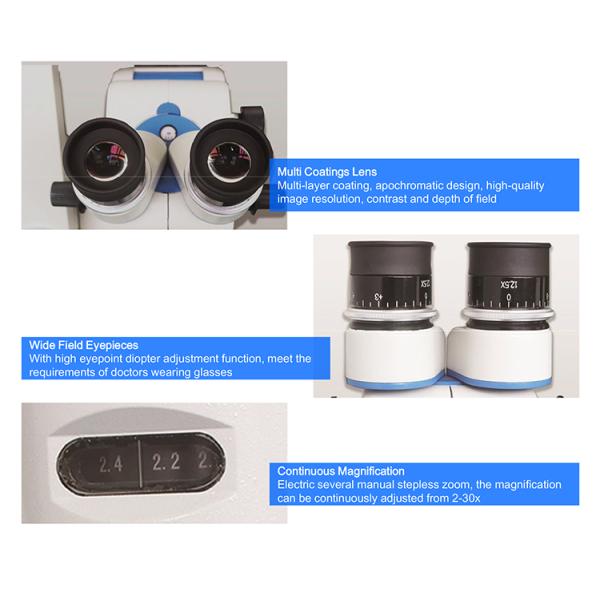

A41.1940 Series Operating Microscopes, is advanced high quality series. It use fibre-optic cable for coaxial illumination, with 3 steps zoom body, has total magnification 2x~30x, featured with Motorized Focusing, it is widely used in hospital for Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy and etc.

--2 People 2 Binocular Head Same Magnification Same View Field
--Manual 4 Steps Zoom Body 0.6x,1.0x, 1.0x, 1.6x, Parallel Light System
--8 Directions Motorized Foot Switch Control Focusing Up/Down, X/Y Moving And Zoom In/Out
--Four Feet With Locking Wheels, Max Extended Length 1250mm
--Coaxial Illumination, Light Spot Dia.50mm, Max Brightness 100000 Lux

Opto Edu A41.1940 Binocular Operating Microscope Dual Head Wf12.5x For Orthopedics

Opto Edu A41.1940 Binocular Operating Microscope Dual Head Wf12.5x For Orthopedics

Opto Edu A41.1940 Binocular Operating Microscope Dual Head Wf12.5x For Orthopedics

Opto Edu A41.1940 Binocular Operating Microscope Dual Head Wf12.5x For Orthopedics

A41.1940 Surgical Operation Microscope Specification
Main Usage Orthopedics, Hand, Chest, Burn And Plastic Surgery, Andrology, Genitourinary, Animal Anatomy
2 Heads 2 People Main Head Binocular, 45° Inclined, Interpupillary Distance 53~76mm
Assitant Head Binocular, 45° Inclined, Interpupillary Distance 53~76mm,
180° Oppsite To Main Head, Same Magnification Same View Field As Main Head
Diopter Both Left & Right Eyetube Diopter Adjustable ±6D
Eyepiece WF12.5x
Zoom Body Motorized Continues Zoom 1:6, Parallel Light System
Objective F=200mm
Total Magnification 2x~30x
View Field Dia.55mm~6mm
Focusing Motorized Focuing Controled By Foot Switch,
Focusing Range +/-25mm, Focusing Speed 33s/Full Range, Auto Return To Zero
Foot Switch 8 Directions X/Y/Z + Zoom In/Out Motorized Foot Switch
--Control Focusing Up/Down, Moving Range 50mm
--Control X/Y Moving, Moving Range 60mm
--Control Magnification Zoom In/Out
--Water Proof Design
Stand Luxury Stand With Control Electrical Parts Built-in
--Max Extended Length 1250mm
--Max Rotatable Angle Of Arm 0~300°
--Distance Between Objective And Gound Surface 800mm~1250mm
Illumination Coaxial Illumination, Light Spot Dia.50mm, Max Brightness 100000 Lux
Weight 164Kgs 　

Opto Edu A41.1940 Binocular Operating Microscope Dual Head Wf12.5x For Orthopedics

Optional Accessories Cata. No,
Objective F=175mm A52.1941-175
F=250mm A52.1941-250
F=300mm A52.1941-300
F=350mm A52.1941-350
Zoom F=180~300mm A52.1941-1830
Adapter Beamsplitter A55.1941
C-Mount 0.3x For 1/3" Digital Camera A55.1942
